WABCO Pipeline Filter

Product Name: Wabco Pipeline Filter
Pipeline diameter: 22.5mm
Its function is to filter impurities in the vehicle's air pressure pipeline, protect various valve components in the vehicle's air circuit, and extend the service life of the pump valve
It is recommended to install pipeline filters at the front end of the vehicle's air pump valve, such as the clutch slave cylinder and AMT control mechanism, for vehicles equipped with iron gas storage tanks, to effectively filter out corrosive impurities

Working principle:
Inject air through one port, filter impurities through a filter, and discharge clean compressed gas through two ports

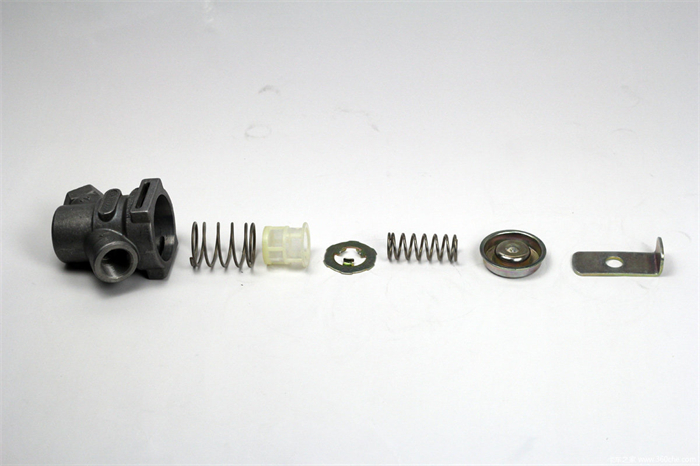

Its internal structure is like this

Reuse operation steps:
1: Press the top cover and pull out the locating pin
2: Remove the filter and clean it before installing it in order

Please note:
1: Pipeline filters cannot filter liquids such as water and are only effective against particulate impurities.
2: It is necessary to regularly clean the internal filter screen to avoid blockages in the air path.
