Truck and Bus Air Supply and Processing Air Processing Governor and Unloader 9753034730 820010150 15

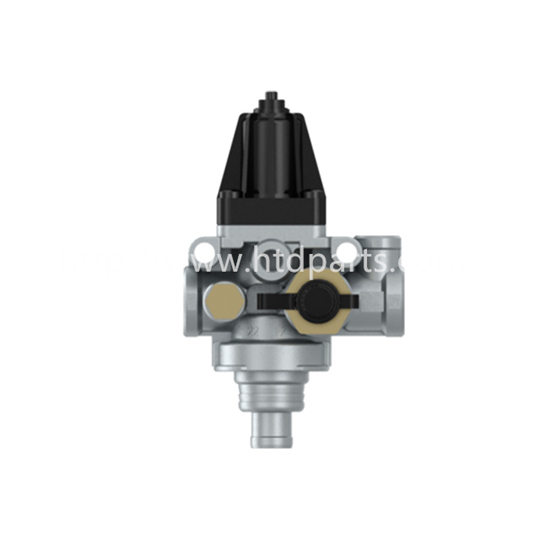

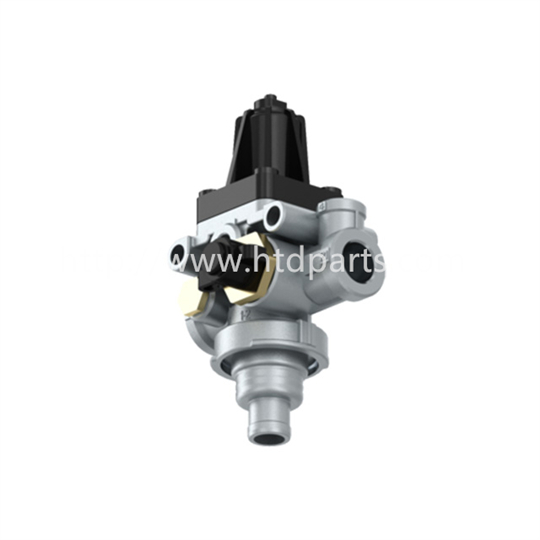

Product Name:	Unloader
Part NO.:	9753034730
Cross NO.:	820010150 1506504 4434820 4611523 81521019132 8283657000 A0024314906 1612026 1612037 1612049 1612050 99701725373 MQPS-3512001 MQS-3512001 G822880020150 TDAS9753034730 160612 4804765 02516892 02516923 02516973 02521211 02808514 04804765 42085762 S975-303-473-0 20G68K4520 9454310 BBU5210 BBU7398 8235-S9753034730 6300-9753034730 0005660001 81521016076 81521016083 81521016085 81521016112 81521016114 81521016119 81521016123 81521016132 81521019083 0014310006 0014310606 0014311206 0014313406 0014319806 0024313406 0024314306 0024314906 0024318306 S9753034730 1102733544138 1102435544308 47540D8929 1725373 5000243947 5000464197 5000819893 7700051785 49800004000 2090402 3345190R91 680B-3511010 99100360002 79100360002 79100360070 32409540 6789355 WAB9753034730
Application:	Truck and Bus
Package:	Carton or Plywood pallet as required
Shipment:	By air or by sea
Calculated Volume (dm³)	1.661
Cut-out pressure	8.1 bar

Max. operating pressure25.0 bar
Mounting2x Ø 8.8 mm
Opening pressure12.0 bar
Operational range0.6+0.4 bar
Port thread 1M22 x 1.5
Port thread 1-2M16 x 1.5
Port thread 21M22 x 1.5
Port thread 22M12 x 1.5
Port thread 3Union Ø 20 mm
Port threadsM22 x 1.5
Product categoryDevice
Technical specificationOE specification
Temperature range-40°C to +80°C
TypeWith one way valve
VersionWith tire inflating valve
Size (mm x mm x mm)169 x 108 x 91
UPC193133450634
Weight (kg)0.755
Weight (lb)1.664
Henan Huatuoda Industrial Co., Ltd. is mainly engaged in commercial vehicle parts and passenger car parts, providing original brand chassis system parts, braking system parts, engine parts, and truck and bus parts. Suitable for heavy trucks, medium trucks, light trucks, pickup trucks, buses and other models.
