| Product Name: |

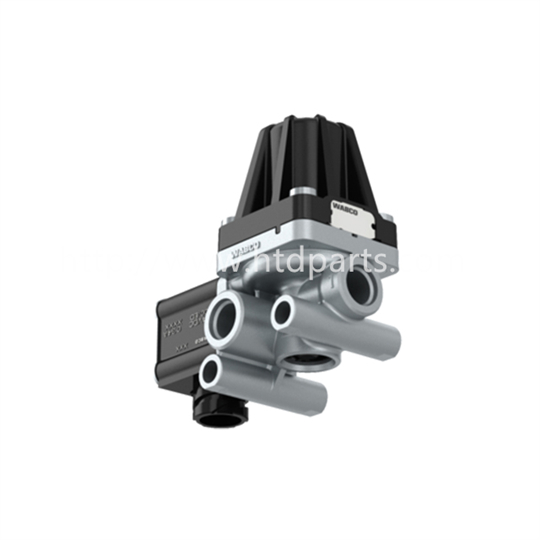

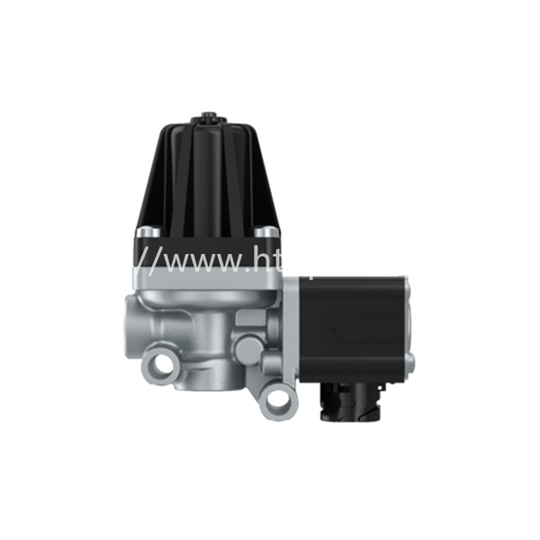

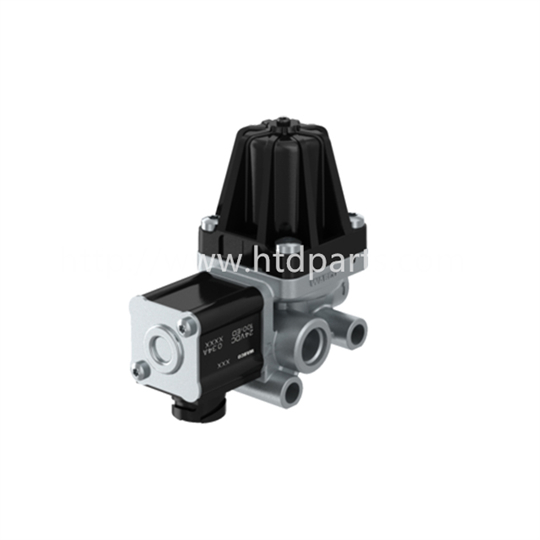

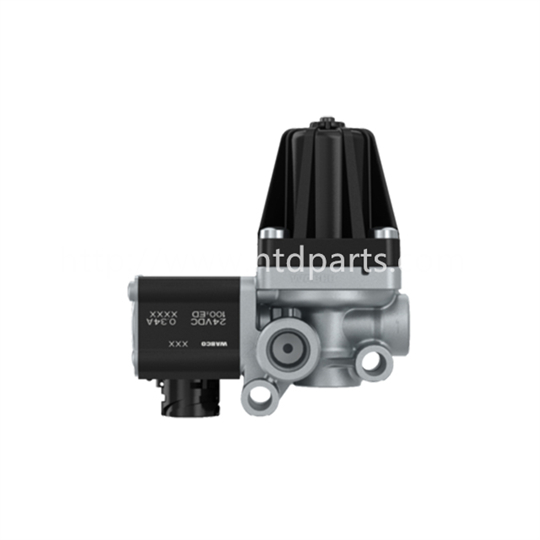

Pressure Limiting Unit |
| Part NO.: |
9750090010 |
| Cross NO.: |
TDAS9750090010 S9750090010 82855460000 10664729 6300-9750090010 0005661836 A0044310306 0044310306 WAB9750090010 |
| Application: |
Truck and Bus |
| Package: |
Carton or Plywood pallet as required |
| Shipment: |
By air or by sea |
Calculated Volume (dm³)0.86016
Delivered pressure5.5 at p1 = 8.5 bar
Electrical connectionBayonet DIN 72585 A1-2.1-Sn/K2
Max. operating pressure13.0 bar
Mounting2x Ø 8 mm
Nominal diameter1.8 mm
Nominal flow rate0.025 (L/min)
Port thread 1M16 x 1.5 JED-388-3
Port thread 2M16 x 1.5 JED - 388-3
Port thread 3Flap Exhaust
Product categoryDevice
Technical specificationOE specification
Temperature range-40°C to +80°C
TypeAir Control Unit
Voltage24 V
Size (mm x mm x mm)120 x 64 x 112
UPC193133450467
Weight (kg)0.537
Weight (lb)1.1839
