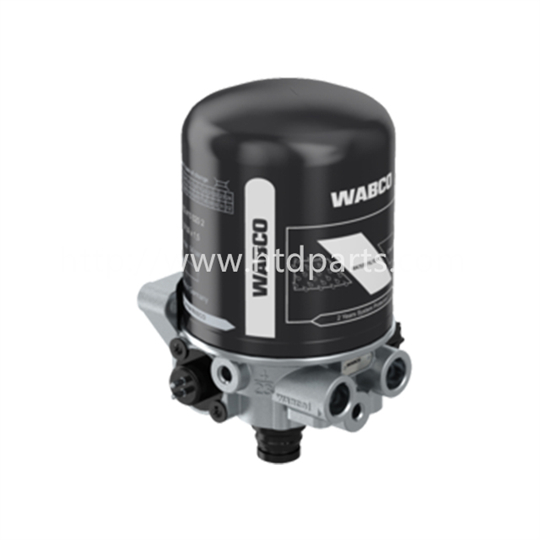

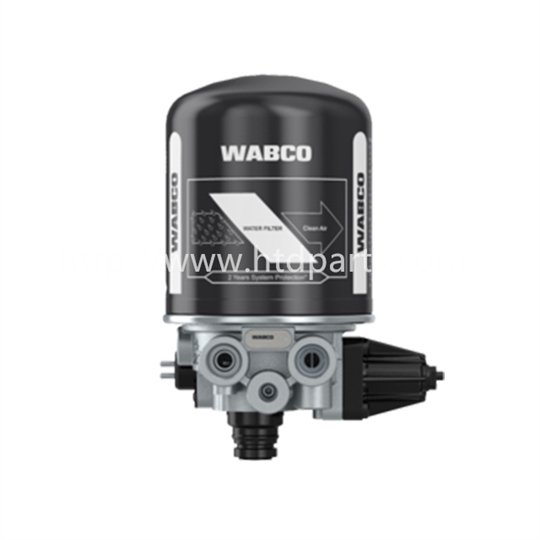

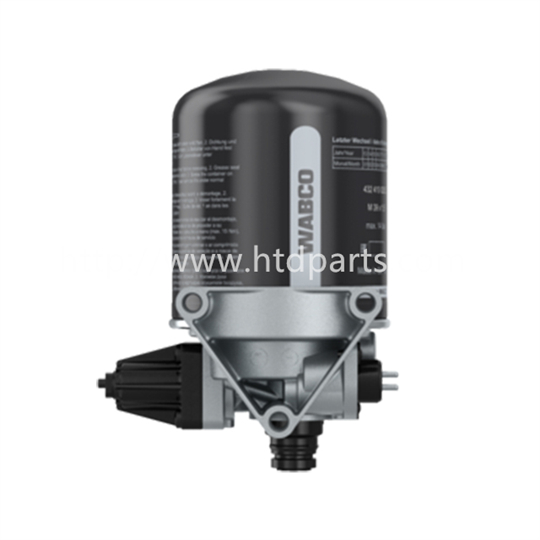

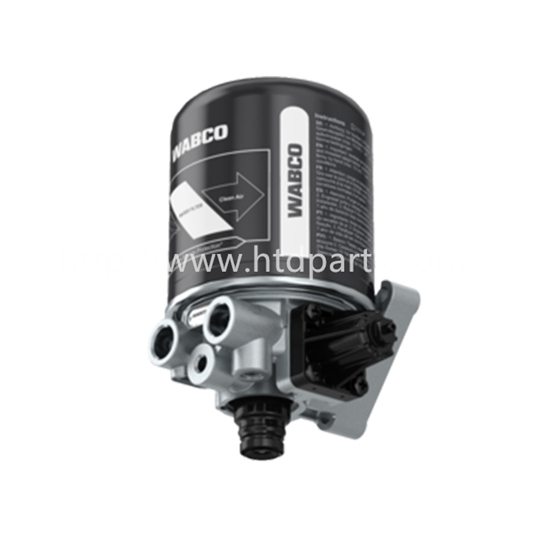

Single Chamber Air Dryer 4324101020 1505967 81521026046 1932680
Single Chamber Air Dryer 4324101020 1505967 81521026046 1932680
Single Chamber Air Dryer 4324101020 1505967 81521026046 1932680
Single Chamber Air Dryer 4324101020 1505967 81521026046 1932680

Single Chamber Air Dryer 4324101020 1505967 81521026046 1932680

  • Cartridge type: Desiccant Cartrige
  • Cut-out pressure: 8.1 bar
  • Exhaust: Snap-on contour
  • Heater: 894 260 040 2
  • Heating connection: Kostal M27 x 1
  • Max. operating pressure: 13.0 bar
  • Operational range: 0.6+0.4 bar
  • Port thread 1: M22 x 1.5
  • Port thread 21: M22 x 1.5
  • Port thread 22: M12 x 1.5
  • Product category: Device
  • Temperature range: -40°C to +65°C
  • Voltage: 24 V
  • Size (mm x mm x mm): 253 x 145 x 194
Send Email Inquiry Now
Description Technical Data Related Products Inquiry

Product Description

Product Name: Single Chamber Air Dryer
Part NO.: 4324101020
Cross NO.: 1505967
81521026046
1932680
Application: Truck and Bus
Package: Carton or Plywood pallet as required
Shipment: By air or by sea
