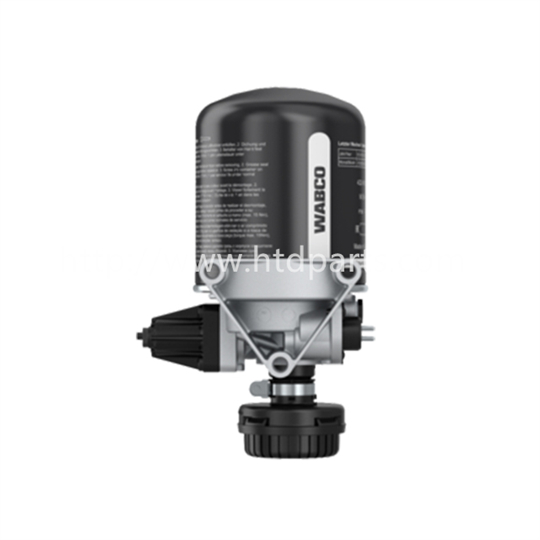

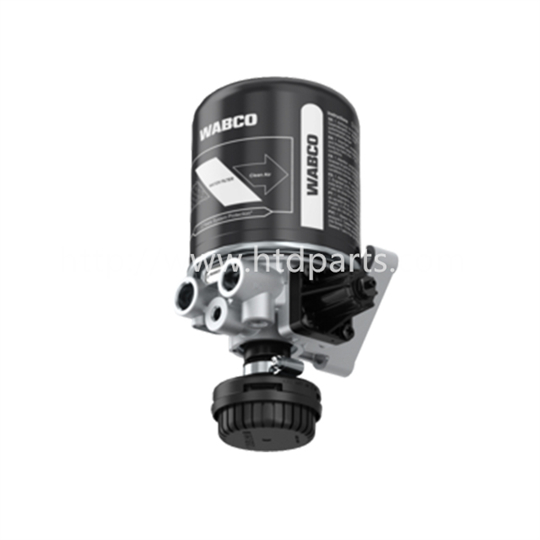

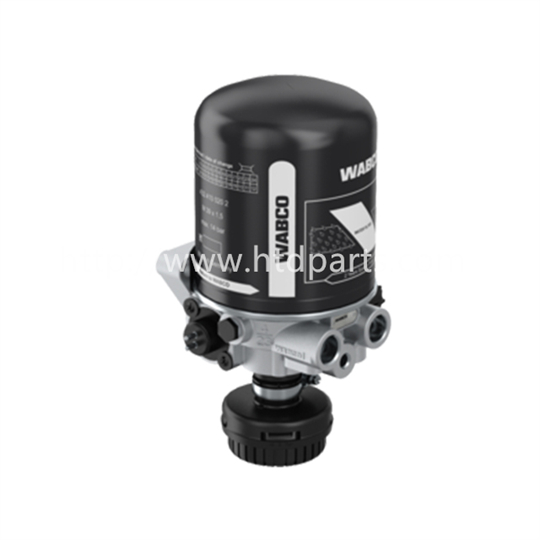

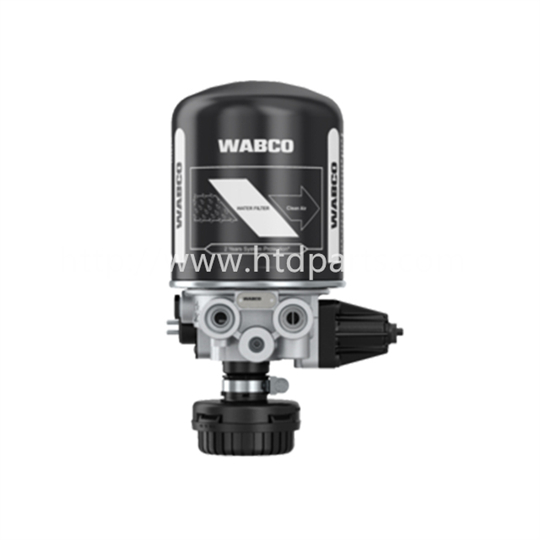

Single Chamber Air Dryer 4324101040 8285537000 8285537000B 0300582300 99100360454
Single Chamber Air Dryer 4324101040 8285537000 8285537000B 0300582300 99100360454
Single Chamber Air Dryer 4324101040 8285537000 8285537000B 0300582300 99100360454
Single Chamber Air Dryer 4324101040 8285537000 8285537000B 0300582300 99100360454

Single Chamber Air Dryer Single Cannister 4324101040 8285537000 8285537000B 0300582300 99100360454

  • Cartridge type: Desiccant Cartrige
  • Cut-out pressure: 8.1 bar
  • Exhaust: Snap-on contour
  • Heating connection: Kostal M27 x 1
  • Max. operating pressure: 13.0 bar
  • Operational range: 0.6+0.4 bar
  • Port thread 1: M22 x 1.5
  • Port thread 21: M22 x 1.5
  • Port thread 22: M12 x 1.5
  • Port thread 4/23: M12 x 1.5
  • Silencer: 432 407 012 0
  • Temperature range: -40°C to +65°C
  • Voltage: 24 V
  • Size (mm x mm x mm): 188 x 154 x 299
Send Email Inquiry Now
Description Technical Data Related Products Inquiry

Product Description

Product Name: Single Chamber Air Dryer
Part NO.: 4324101040
Cross NO.: 8285537000
8285537000B
0300582300
99100360454
Application: Truck and Bus
Package: Carton or Plywood pallet as required
Shipment: By air or by sea

Henan Huatuoda Industrial Co., Ltd. is mainly engaged in commercial vehicle parts and passenger car parts, providing original brand chassis system parts, braking system parts, engine parts, and truck and bus parts. Suitable for heavy trucks, medium trucks, light trucks, pickup trucks, buses and other models.

Whatsapp/WeChat: +86-19337191356
email: admin1@htdparts.com
we are welcome your letters/calls.

Technical Data

We have our own warehouse, located in No. 17 Wenxing Road, Zhengzhou City, China. As well we have the service station for ZF gearbox repairing and Voith retarder 24 hours service line: +86-37153621279.
