Trailer Control Valve 9730090010 445332050 WG9000360525/2 1506483 352201552A 81523016183
Trailer Control Valve 9730090010 445332050 WG9000360525/2 1506483 352201552A 81523016183
Trailer Control Valve 9730090010 445332050 WG9000360525/2 1506483 352201552A 81523016183
Trailer Control Valve 9730090010 445332050 WG9000360525/2 1506483 352201552A 81523016183
Trailer Control Valve 9730090010 445332050 WG9000360525/2 1506483 352201552A 81523016183

Trailer Control Valve 9730090010 445332050 WG9000360525/2 1506483 352201552A 81523016183

  • Distance between bolts: 85x85 mm
  • Max. operating pressure: 8.5 bar
  • Mounting: 4x M8
  • Multi nominal diameter (from port 1 to x): 9 mm
  • Port thread 11: M22 x 1.5 JED - 388
  • Port thread 12: M22 x 1.5 JED - 388
  • Port thread 22: M22 x 1.5 JED - 388
  • Port thread 41: M22 x 1.5 JED-388
  • Port thread 42: M22 x 1.5 JED-388
  • Port thread 43: M16 x 1.5 JED-388
  • Predominance: 0.20 bar
  • Temperature range: -40°C to +80°C
  • Size (mm x mm x mm): 193 x 144 x 139
Send Email Inquiry Now
Description Technical Data Related Products Inquiry

Product Description

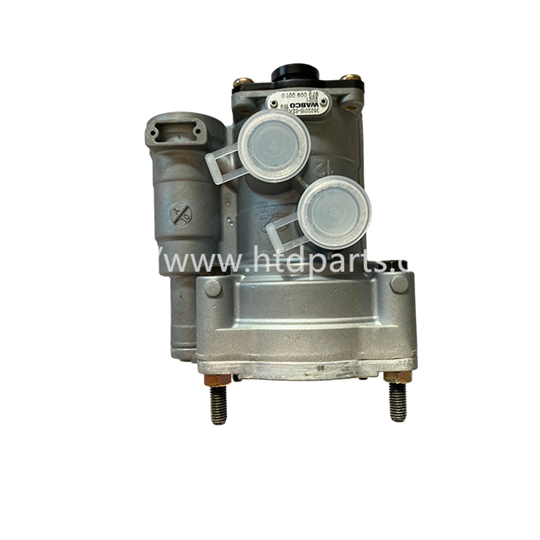

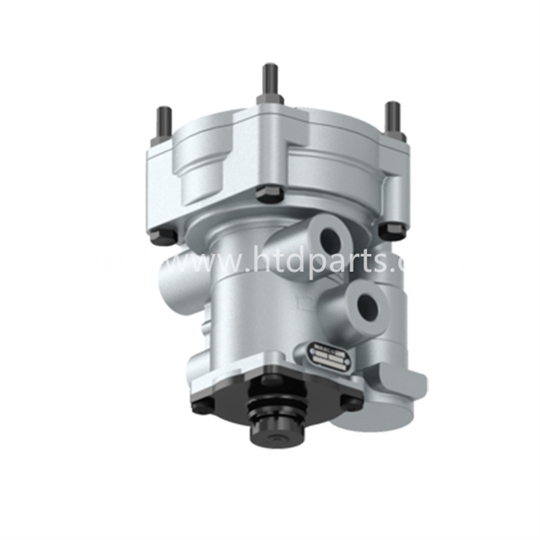

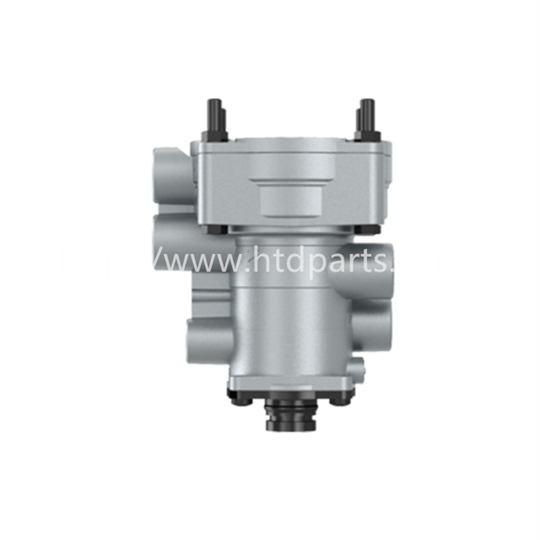

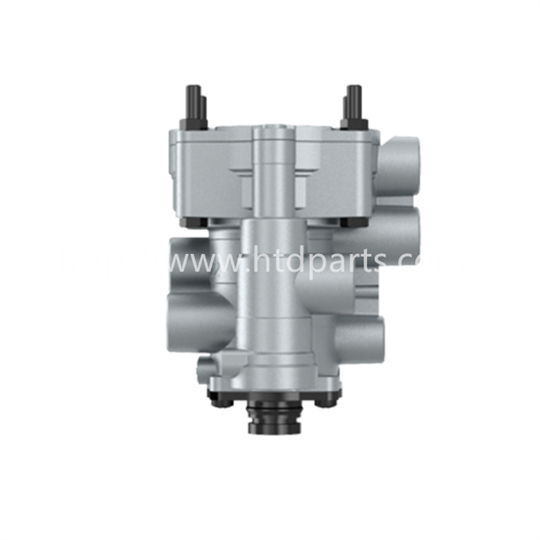

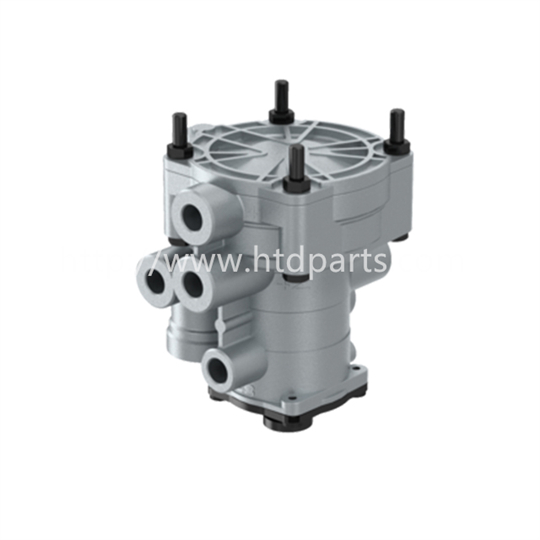

Product Name: Trailer Control Valve
Part NO.: 9730090010
Cross NO.: 445332050
WG9000360525/2
1506483
A0034318205
352201552A
3522015-52A
55116140
332607
81523016183
81523016184
81523016186
34318205
34311305
34311405
34313405
34313505
34318205
A0034318205
81523016183
81523016184
5010376021
WG9000360525/1
55116140
Application: Truck and Bus
Package: Carton or Plywood pallet as required
Shipment: By air or by sea

Henan Huatuoda Industrial Co., Ltd. is mainly engaged in commercial vehicle parts and passenger car parts, providing original brand chassis system parts, braking system parts, engine parts, and truck and bus parts. Suitable for heavy trucks, medium trucks, light trucks, pickup trucks, buses and other models.
