Relay Valve 9730060030 1518267 81521166075 A0044296344 1935646 0044296344
Relay Valve 9730060030 1518267 81521166075 A0044296344 1935646 0044296344
Relay Valve 9730060030 1518267 81521166075 A0044296344 1935646 0044296344
Relay Valve 9730060030 1518267 81521166075 A0044296344 1935646 0044296344

Relay Valve 9730060030 1518267 81521166075 A0044296344 1935646 0044296344

  • Exhaust: Snap on contour JED - 463
  • Max. operating pressure: 8.5 bar
  • Opening pressure: 0.9 bar
  • Port thread 1: V22 x 1.5 JED-388-2
  • Port thread 2: 2x V22 x 1.5 JED - 388-2
  • Port thread 3: Silencer
  • Port thread 4: M16 x 1.5 JED - 388
  • Predominance: 0.90 bar
  • Regulating ratio: 1:1
  • Temperature range: -40°C to +80°C
  • Size (mm x mm x mm): 97 x 111 x 126
Send Email Inquiry Now
Description Technical Data Related Products Inquiry

Product Description

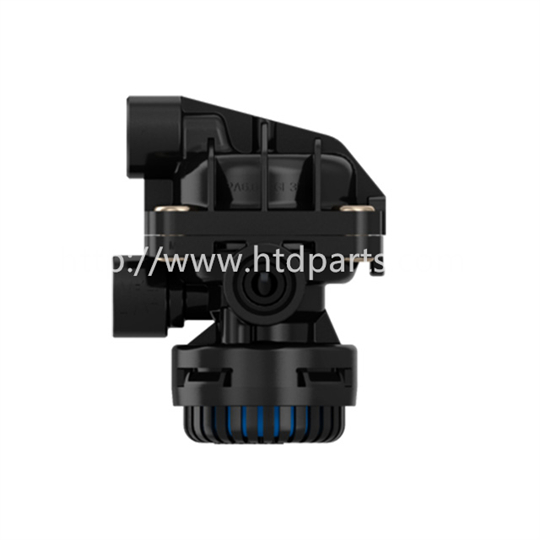

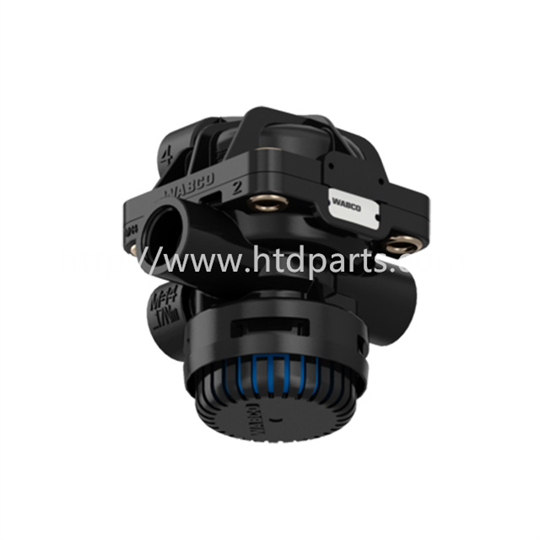

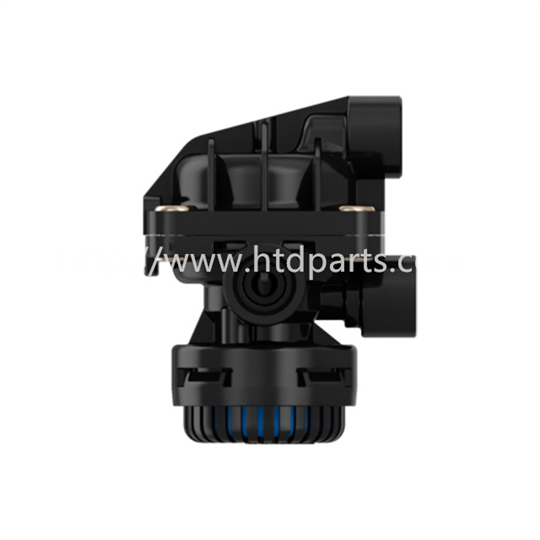

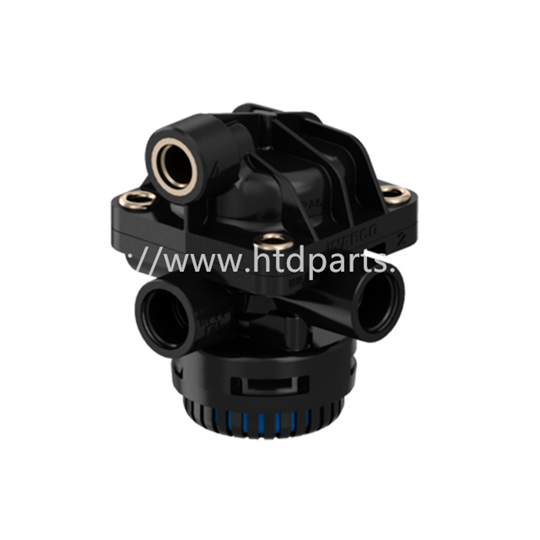

Product Name: Relay Valve
Part NO.: 9730060030
Cross NO.: 1518267
A0044296344
81521166075
81521166074
81521169075
0044296344
81521166076
1935646
Application: Truck and Bus
Package: Carton or Plywood pallet as required
Shipment: By air or by sea

Henan Huatuoda Industrial Co., Ltd. is mainly engaged in commercial vehicle parts and passenger car parts, providing original brand chassis system parts, braking system parts, engine parts, and truck and bus parts. Suitable for heavy trucks, medium trucks, light trucks, pickup trucks, buses and other models.

Whatsapp/WeChat: +86-19337191356
email: admin1@htdparts.com
we are welcome your letters/calls.

Technical Data

We have our own warehouse, located in No. 17 Wenxing Road, Zhengzhou City, China. As well we have the service station for ZF gearbox repairing and Voith retarder 24 hours service line: +86-37153621279.
