Solenoid Modulator Valve 9721950450 446001820 S446001820 1525820
Solenoid Modulator Valve 9721950450 446001820 S446001820 1525820
Solenoid Modulator Valve 9721950450 446001820 S446001820 1525820
Solenoid Modulator Valve 9721950450 446001820 S446001820 1525820

Solenoid Modulator Valve 9721950450 446001820 S446001820 1525820

  • Distance between holes: 71x20 mm
  • Electrical connection: Bayonet DIN 72 585 A1-3.1-Sn/K1
  • Exhaust: Modified Integrated silencer
  • Max. operating pressure: 11.0 bar
  • Mounting: 2x Ø 8.5 mm
  • Port thread 1: RC 3/8" JIS B 0253
  • Port thread 2: RC 3/8" JIS B 0253
  • Protection class: IP 68 / IP 69K
  • Rated current: 1650 mA
  • Temperature range: -40°C to +80°C
  • Voltage: 24 V
  • Size (mm x mm x mm): 102 x 121 x 60
Send Email Inquiry Now
Description Technical Data Related Products Inquiry

Product Description

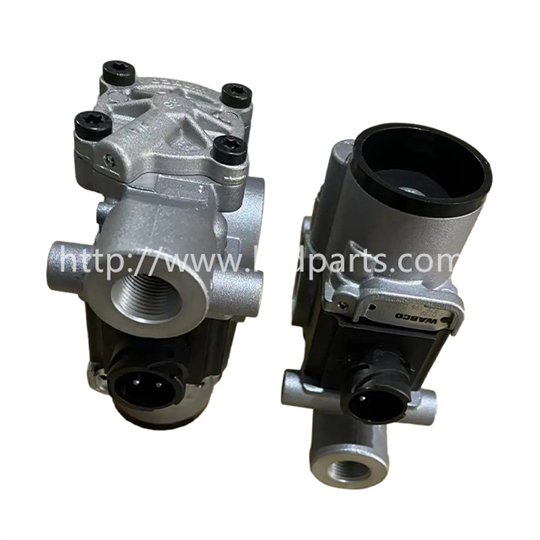

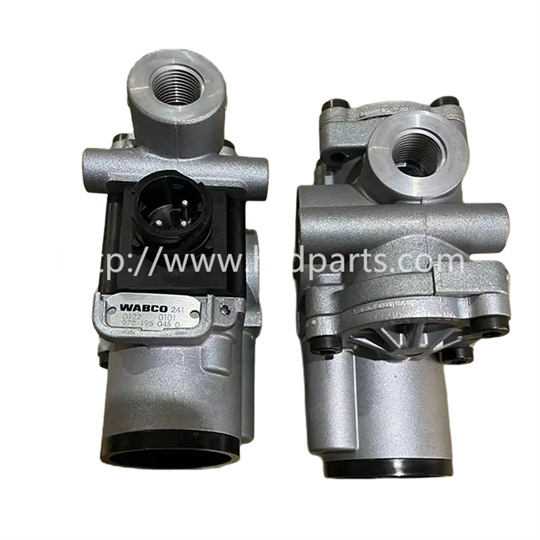

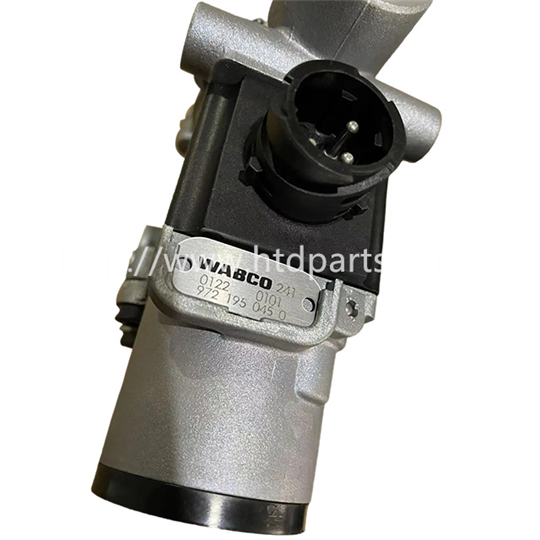

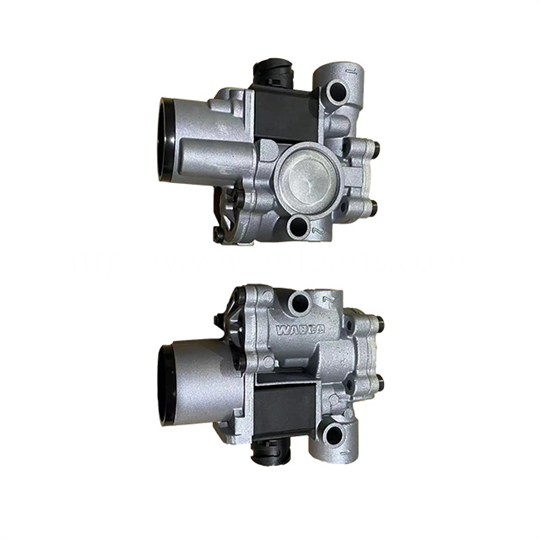

Product Name: Solenoid Modulator Valve
Part NO.: 9721950450
Cross NO.: 446001820
S446001820
1525820
Application: Truck and Bus
Package: Carton or Plywood pallet as required
Shipment: By air or by sea

Henan Huatuoda Industrial Co., Ltd. is mainly engaged in commercial vehicle parts and passenger car parts, providing original brand chassis system parts, braking system parts, engine parts, and truck and bus parts. Suitable for heavy trucks, medium trucks, light trucks, pickup trucks, buses and other models.

Whatsapp/WeChat: +86-19337191356
email: admin1@htdparts.com
we are welcome your letters/calls.

Technical Data

We have our own warehouse, located in No. 17 Wenxing Road, Zhengzhou City, China. As well we have the service station for ZF gearbox repairing and Voith retarder 24 hours service line: +86-37153621279.
