Quadruple Protection Valve 9347050050 A0034315406 1935509 ZG046430002 QWAB9347050050
Quadruple Protection Valve 9347050050 A0034315406 1935509 ZG046430002 QWAB9347050050
Quadruple Protection Valve 9347050050 A0034315406 1935509 ZG046430002 QWAB9347050050

Quadruple Protection Valve 9347050050 A0034315406 1935509 ZG046430002 QWAB9347050050

  • Charging pressure: 4.5 bar
  • Closing pressure dynamic 21: 7.0 bar
  • Closing pressure dynamic 22: 7.0 bar
  • Closing pressure dynamic 23: 4.5 bar
  • Closing pressure dynamic 24: 4.5 bar
  • Electrical connection: DIN 72585
  • Max. operating pressure: 13.0 bar
  • Opening pressure 21: 9 bar
  • Opening pressure 22: 9 bar
  • Opening pressure 23: 7.5 bar
  • Opening pressure 24: 7.5 bar
  • Port thread 1: M22 x 1.5
  • Port thread 22: M22 x 1.5
  • Port thread 24: M22 x 1.5
  • Port thread 26: M22 x 1.5
  • Size (mm x mm x mm): 217 x 136 x 104
Send Email Inquiry Now
Description Technical Data Related Products Inquiry

Product Description

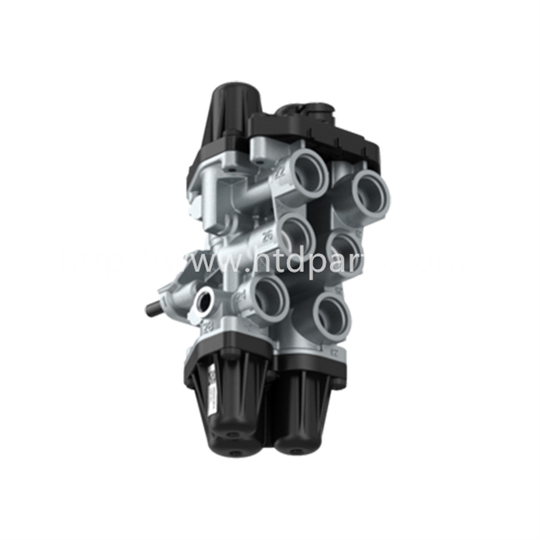

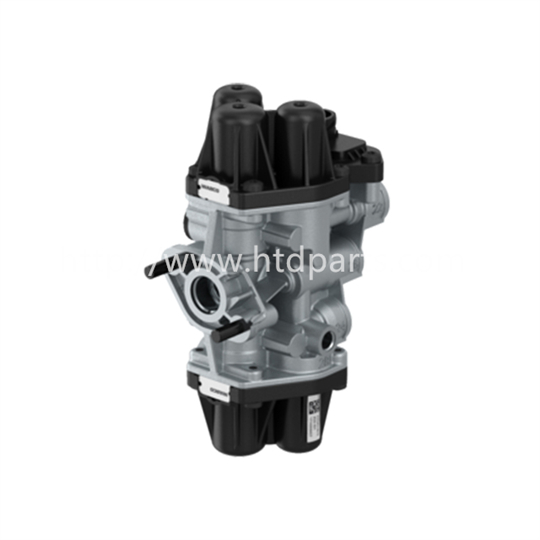

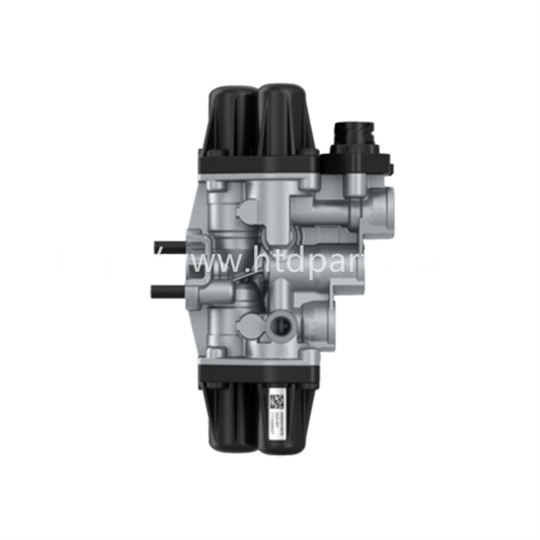

Product Name: Quadruple Protection Valve
Part NO.: 9347050050
Cross NO.: 1505128
A0034315706
341420
ZG046430002
0034315406
0034315706
0034316106
A0034315406
A0034315706
QWAB9347050050
1505128
1935509
Application: Truck and Bus
Package: Carton or Plywood pallet as required
Shipment: By air or by sea

Henan Huatuoda Industrial Co., Ltd. is mainly engaged in commercial vehicle parts and passenger car parts, providing original brand chassis system parts, braking system parts, engine parts, and truck and bus parts. Suitable for heavy trucks, medium trucks, light trucks, pickup trucks, buses and other models.
